VertiStack® Clear Door

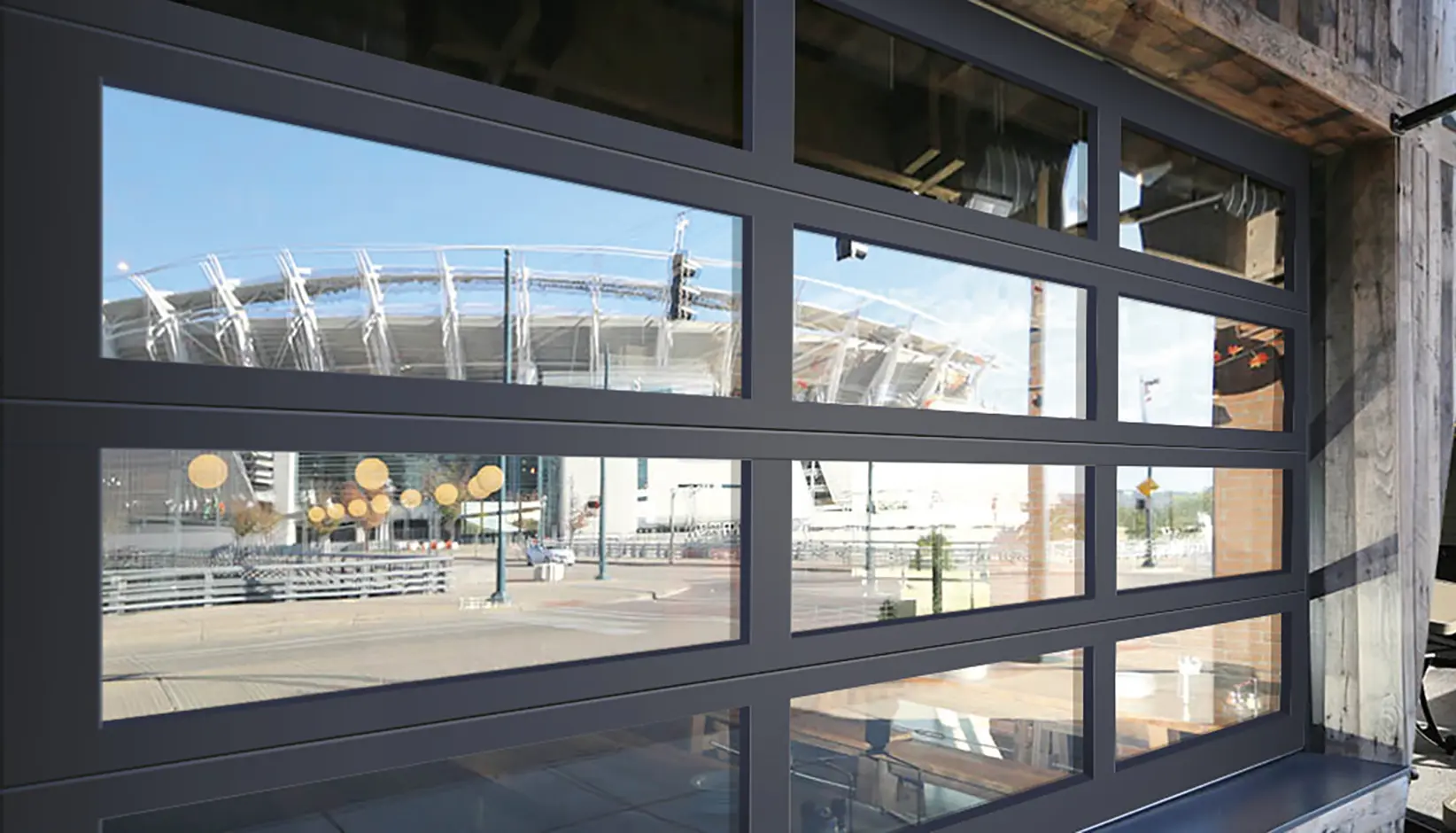

The VertiStack Clear door features a unique construction with sections that stack above the opening, eliminating the need for overhead tracks. This allows for a clear ceiling and won’t conflict with mechanical, electrical or plumbing fixtures located in the ceiling. Designed with a clean, modern aesthetic, there are no hinges or exposed tracks or cables, and it is available with a variety of aluminum finishes and window materials.

Models

Model VS904 Standard Specifications

Min Opening Width*	4’6″
Max Opening Width*	20’0″
Min Opening Height	4’0″
Max Opening Height	14’0″
Thickness	2 1/8″
Insulation	N/A

Model VS904U Standard Specifications

Min Opening Width*	4’6″
Max Opening Width*	20’0″
Min Opening Height	4’0″
Max Opening Height	14’0″
Thickness	2 1/8″
Insulation	Intellicore insulated rails & stiles

*The door will always be 6” wider than the opening width, so door width range is 5’0 to 20’6”.

This product is available for commercial applications only, click here for the residential version.

For interior mount only.

Calculate Number of Panels and Sections

Door Opening Width*	Number of Panels
4’6″ – 8’8″	2
8’9″-12’8″	3
12’9″-15’8″	4
15’9″-19’8″	5
19’9″-20’0″	6

Door Height	Number of Sections
4’0″-5’8″	3
5’9″-7’0″	4
7’1″-8’4″	5
8’5″-9’8″	6
9’9″-11’2″	7
11’3″-12’8″	8
12’9″-14’0″	9

Product Approvals:

Florida Product Approval #FL42132

Options

Aesthetics

Glazing Material Options

*Mirrored and laminate not available in 1/2″

Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 5/8″.

**Tempered glass options availablen

*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.

This product is available for commercial applications only, not for residential applications at this time.

Safety Features

Strap Brake Safety System

Situated at the bottom section of the door and within the wall angles, this system is triggered when strap tension is lost. It releases the brake lever and engages the brake teeth to prevent the bottom and subsequent sections from falling.

Specs/Drawings

Model	BIM	Shop Drawing	Specs	Installation Manual	Warranty
VS904	DOCUMENT	-	DOCUMENT	PDF	PDF
VS904U	-	-	DOCUMENT	PDF	PDF

Springs and Hardware

25,000 cycle torsion springs

Section locking devices on both sides of the door for increased security

High-strength strap assembly

Commercial 10 ball rollers

2” track mounted to a full-height 12-gauge wall angle

This product is available for commercial applications only, not for residential applications at this time.

Brochures

Brochure VS904

VertiStack™ Clear commercial doors have a clean, modern look and compact stacking sections that save ceiling space.

Brochure Commercial Idea Book

At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.

VertiStack® Clear Door

VertiStack® Clear allows you to bring the outside in. These compact, vertically stacked sections take up minimal ceiling space so it won’t interfere with mechanical, electrical or plumbing fixtures.
