Standard Specifications
| Max Width | 16'2" |
| Max Height | 14'0" |
| Max Door Weight | 1,000 lbs |
| Upward Travel | 24" per second |
| Downward Travel | 15" per second |
| Stiles | Double end stiles (standard) |
| Glazing Available | Tempered, insulated tempered, acrylic and polygal |
| Springs* | 50,000 cycle standard (Max cycles available on a single shaft line) |
| Track Size | 2" angle mount track standard 3" track where applicable |
| Track Type | Standard lift, high lift and full vertical |
| Warranty | Standard paint – 5 years Color Blast® finish – 5 years Material and workmanship – 1 year Hardware – 1 year |
*Cycles can vary depending on door configuration. |
High Performance Door System Powered by LiftMaster
The Clopay Extreme™ Series High Performance Door System boasts an opening speed of 24″ per second, allowing productivity to flourish while also delivering a flawless aesthetic thanks to optional full-view windows. Tandem nylon rollers improve roller life and reduce running noise for smooth, quiet operation while safety stays top of mind with enhanced features such as 3′ of light curtain protection, a cable management system and standard cable tension monitor.
For operator specifications, click here.

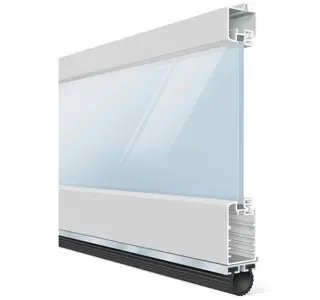

Aluminum Full-View Doors
| Model | Thickness | Spacing | R-Value | Max Width* | Max Height* |
| EX904 | 2-1/8″ | Equal width & spacing | – | 16’2″ | 14’0″ |

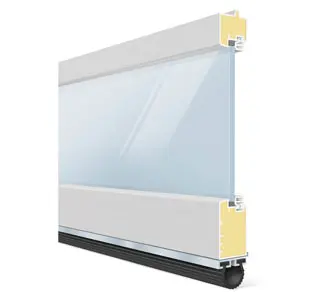

| EX904U*** | 2-1/8″ | Equal width & spacing | 3.8** | 16’2″ | 14’0″ |
*Maximum Width and Height values listed are Standard sizing.
**With clear insulated glass
***With Clopay’s proprietary polyurethane Intellicore insulation.Â
Insulated Steel Full-View Doors
| Model | Section Thickness | Emboss | Exterior Gauge | Section Design | Insulation | R-Value Solid* | R-Value w/Glass** | Thermal Break | Max Width✠| Max Height✠|
| EX3729 | 2″ | Stucco | 27 | Minor Ribbed | Polyurethane*** | 18.4 | 8.0 | Yes | 16’2″ | 14’0″ |
| EX3728 | 2″ | Stucco | 27 | Flush | Polyurethane*** | 18.4 | 8.0 | Yes | 16’2″ | 14’0″ |
| EX3709 | 1-3/8″ | Stucco | 27Â | Minor Ribbed | Polyurethane*** | 12.9 | 5.9 | Yes | 16’2″ | 14’0″ |
| EX3708 | 1-3/8″ | Stucco | 27Â | Flush | Polyurethane*** | 12.9 | 5.9 | Yes | 16’2″ | 14’0″ |
| EX3209 | 2″ | Stucco | 24Â | Minor Ribbed | Polystyrene | 9.1 | 4.4 | Yes | 16’2″ | 14’0″ |
| EX3208 | 2″ | Stucco | 24Â | Flush | Polystyrene | 9.1 | 4.4 | Yes | 16’2″ | 14’0″ |
| EX3159 | 1-3/8″ | Stucco | 27Â | Minor Ribbed | Polystyrene | 6.5 | 3.4 | Yes | 16’2″ | 14’0″ |
| EX3158 | 1-3/8″ | Stucco | 27Â | Flush | Polystyrene | 6.5 | 3.4 | Yes | 116’2″ | 14’0″ |
*R-values calculated per DASMA TDS-163 on a solid door
**R-values calculated per DASMA TDS-163 using weighted average with 3/4″ insulated glass.
***Clopay’s proprietary polyurethane Intellicore insulation.
âśMaximum Width and Height values listed are Standard sizing.Â

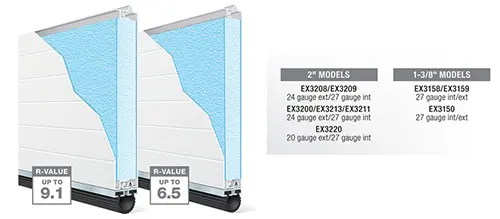

Energy Series
| Model | Section Thickness | Emboss | Ext. Steel Pattern | Ext. Steel Gauge | R-Value* | Thermal Break | Max Widthâś | Max Heightâś |
| EX3220 | 2″ | Stucco | Flush | 20 Gauge | 9.1 | Thermally broken | 16’2″ | 14’0″ |
| EX3213 | 2″ | Woodgrain | Raised panel | 24 Gauge | 9.1 | Thermally broken | 16’2″ | 14’0″ |
| EX3211 | 2″ | Woodgrain | Flush | 24 Gauge | 9.1 | Thermally broken | 16’2″ | 14’0″ |
| EX3200 | 2″ | Stucco | Minor ribbed | 24 Gauge | 9.1 | Thermally broken | 16’2″ | 14’0″ |
| EX3150 | 1-3/8″ | Stucco | Minor ribbed | 27 Gauge | 6.5 | Thermally broken | 16’2″ | 14’0″ |

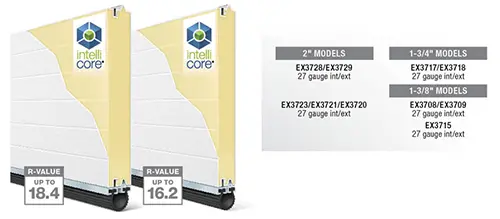

Energy Series with Intellicore®
| Model | Thickness | Emboss | Exterior Steel | Pattern | R-Value* | Std Max Width** | Std Max Height |
| EX3723 | 2″ | Woodgrain | 27 Gauge | Raised Panel | 18.4 | 16’2″ | 14’0″ |
| EX3721 | 2″ | Woodgrain | 27 Gauge | Flush | 18.4 | 16’2″ | 14’0″ |
| EX3720 | 2″ | Stucco | 27 Gauge | Minor Ribbed | 18.4 | 16’2″ | 14’0″ |
| EX3717 | 1 3/4″ | Stucco | 27 Gauge | Minor Ribbed | 16.2 | 16’2″ | 14’0″ |
| EX3718 | 1 3/4″ | Stucco | 27 Gauge | Flush | 16.2 | 16’2″ | 14’0″ |
| EX3715 | 1 3/8″ | Stucco | 27 Gauge | Minor Ribbed | 12.9 | 16’2″ | 14’0″ |
Clopay’s proprietary polyurethane Intellicore® insulation
*Calculated door section R-value is in accordance with DASMA TDS-163
**For sizes over 32’2″ wide consult factory for specific configuration requirements.

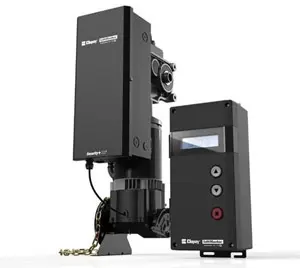

| Motor Design | 1.25 HP configuration serving single phase 115V/230V and 3-phase 230V configurations 3-phase 460/575V available with accessory transformer |
| Wall Controller | Separation of low and high voltage wiring - includes functionality of 3-button station, PLUS setting door profile, programming limits, diagnostics |
| Programming | Complete the following programming at floor level: set limits; choose door profiles for speed; set operating modes; select photo entrapment devices |
| Display | Provides textual status indications including - Absolute cycle count - Service cycle count - Diagnostics messages - Door/operator status |
| Cycle Counter | Re-settable cycle counter via the wall controller and/or through MyQ facility |
| Limit Settings | Simple electronic push-button setup via the wall controller |
Options
Aluminum Full-View Doors
Clear Glass
Gray Tinted Glass
Bronze Tinted Glass
Mirrored Glass*
Obscure Glass
White Laminate Glass*
Black Laminate Glass*
Frosted Glass Or Acrylic
Clear Acrylic
Gray Acrylic
White Acrylic
Clear Polycarbonate
Bronze Polycarbonate
Aluminum Panel (Color Matched)
Extreme™ Series must have tempered glass
*Mirrored and laminate not available in 1/2″
Glass options above only available on full-view sections. Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 5/8″. Low-E available on insulated glass.Â
Color Options
Clear Aluminum (Anodized)
Standard White
Bronze (Painted)
Bronze-Anodized Bronze Anodized*
Gray Acrylic
Black (Anodized)*
Dark Bronze Anodized*
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.
Premium finishing options include:
- RAL color powder coat
- 187 different powder coat offerings
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
*Model EX904U is not available with powder coat finish.
Glass Panel Options
19-1/2” x 16”
42” x 16”
Modern Slim Windows*
Standard White
Almond
Desert Tan
Sandtone
Bronze
Mocha Brown
Gray
Charcoal
Chocolate
Black
Trinar® White*
Lustra Black*±
Lustra Charcoal*±
Clear Polycarbonate
*Available on select models.
±Finish will have smooth texture.
Custom powder coat and Color Blast® finishes available.Â
Premium finishing options include:
- Custom Colors with Color Blast® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
Safety Features
- UL325 Approved Light Curtain
- Cable tension monitor
- Optional wireless bottom safety edge
Construction
Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting.
Insulated models made of 2-1/8" durable commercial grade aluminum with polyurethane insulation

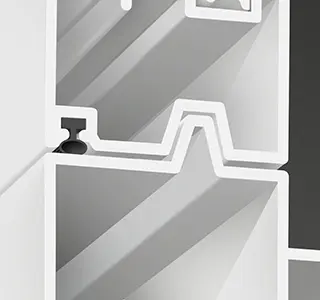

Tongue-and-groove with integral joint seal for further reduction of air and water infiltration.

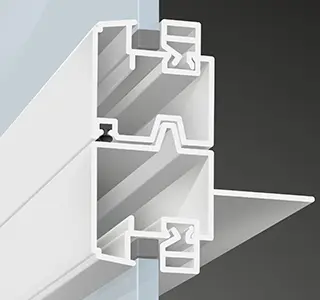

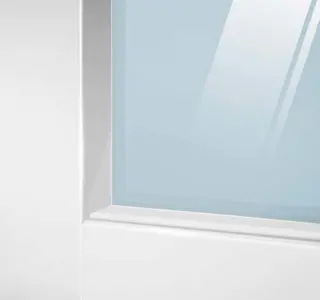

Smooth flat frame edge design for a more contemporary look.
Reinforcing fin included on doors wider than 14’. Doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WINDCODE® doors may vary.
Specs/Drawings
| Model | BIM | Shop Drawing | Specs | Installation Manual | Warranty |
| Model EX3150 | RFA | - | DOCUMENT RTF |
- | - |
| Model EX3158 | - | - | DOCUMENT RTF |
- | - |
| Model EX3159 | - | - | PDF DOCUMENT RTF |
- | |
| Model EX3200 | RFA | - | - | ||
| Model EX3208 | - | - | DOCUMENT RTF |
||
| Model EX3209 | - | - | PDF RTF |
||
| Model EX3211 | - | - | PDF RTF DOCUMENT |
||
| Model EX3213 | - | - | PDF RTF DOCUMENT |
||
| Model EX3220 | RFA | - | PDF DOCUMENT |
||
| Model EX3708 | RFA | - | DOCUMENT RTF |
||
| Model EX3709 | - | - | RTF DOCUMENT |
||
| Model EX3715 | RFA | - | RTF DOCUMENT |
||
| Model EX3717 | RFA | - | DOCUMENT RTF |
||
| Model EX3718 | RFA | - | DOCUMENT RTF |
||
| Model EX3720 | RFA | - | DOCUMENT |
||
| Model EX3721 | - | - | - | ||
| Model EX3723 | - | - | DOCUMENT RTF |
||
| Model EX3728 | - | DOCUMENT |
|||
| Model EX3729 | - | - | DOCUMENT RTF |
||
| Model EX904 | - | - | DOCUMENT RTF |
||
| Model EX904U | - | - | DOCUMENT RTF |
Springs and Hardware
Double-End Stiles
Helps improve hinge longevity
Lift Cable with Thimble
Extreme Options Lift Cable with Thimble Thimble helps reduce wear and extend cable life
Rollers
Long stem tandem rollers provide longer roller life and quiet door operation
Cable Snubber
Maintains tension on lift cable to prevent it from coming off of the drum
Pusher Spring
Thimble helps reduce wear and extend cable life
WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.
50,000 cycle spring standard Option available for maximum cycles on a single shaft line Springs are shot peened to improve resistance to fatigue
